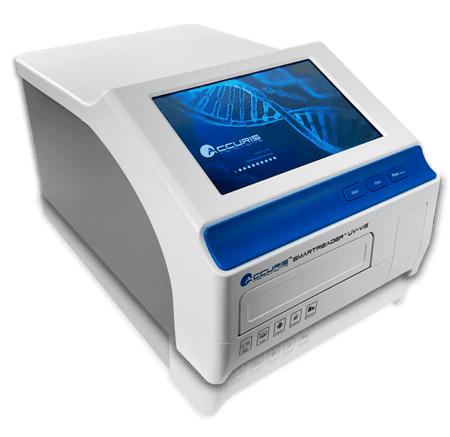

Benchmark Scientific - Accuris Smartreader UV-VIS
The Accuris SmartReader™ UV-Vis Microplate Readers (models MR9610 and MR9611) have been designed with ease-of-use and fast results in mind. These instruments brings extensive capabilities to the lab bench and are designed for the busy lab with multiple users. A large touch screen command center is extremely user-friendly and allows for fast set up of new protocols, as well as modifying and running existing protocols.
| Product description | Catalog # | Quantity | Price | |
|---|---|---|---|---|
|
MR9600-TP |
|
$368.93 $344.96 |
||
|
MR9600-PA |
|
$35.19 $32.91 |
Benchmark Scientific - Accuris Smartreader UV-VIS Product Description
The Accuris SmartReader™ UV-Vis Microplate Readers (models MR9610 and MR9611) have been designed with ease-of-use and fast results in mind. These instruments brings extensive capabilities to the lab bench and are designed for the busy lab with multiple users. A large touch screen command center is extremely user-friendly and allows for fast set up of new protocols, as well as modifying and running existing protocols.
Monochromator technology … no filters needed
The monochromator-based optical system allows for precise selection of wavelengths from 200nm to 1000nm, with no filters required. This range makes the SmartReader UV-Vis™ useful not only for typical ELISA , Bradford Lowry, and turbidity assays but also for more advanced applications such as quantitation of nucleic acids and proteins. The SmartReader™ UV-Vis can be set for Endpoint, Kinetic and Spectral Scanning assays.
High Throughput Capability
The MR9610 is designed for efficient processing of multiple samples and
accepts standard 96 well plates as well as 384 well plates for high density
screening. The plate layout interface allows for a quick and intuitive setup of a plate well’s contents. Users can highlight and label multiple wells to save time. The display shows a graphical representation of the plate. Users can label each well as required for: “known standard”, “unknown sample”, “blank well” , “QC Control well”, “positive control”, “negative control”, and “empty”.
Optimized results with plate shaking and incubation
Controllable plate shaking and incubation allow for optimization of assay results. The shaking speed can be controlled at different intensities with options for timed and pulsed shaking before a reading, or in between readings when performing a kinetic assay. The linear motion efficiently and uniformly mixes all samples in both 96 and 384 well plates. Temperature can be controlled from ambient +5⁰C up to 45⁰C, allowing for the processing of enzyme kinetics, and bacterial growth assays.
SmartDrop™ Accessory Plate
Absorbance measurements of exceptionally small volumes (<0.5ul) can be achieved using the SmartDrop™ Accessory Plate. The SmartDrop™ plate accommodates up to 16 samples and is ideal for checking nucleic acid concentrations and purity for Next Gen Sequencing, or protein concentrations.
| Model |
Accuris SmartReader UV-Vis |
|||
| Plates Accepted |
96-well and 384-well flat bottom (cuvettes accepted in MR9611 model) |
|||
| Display |
10-inch color touch screen |
|||
| Controls |
Touch screen and mouse |
|||
| Light Source |
Xenon Flash Lamp |
|||
| Wavelength range |
200-1000nm |
|||
| Wavelength Precision |
± 2 nm |
|||
| Wavelength Accuracy |
± 2 nm |
|||
| Wavelength selection |
Monochromator |
|||
| Read-out range |
0 – 4.0 OD |
|||
| Detector |
Dual silicon photoelectric detectors for measurement and reference |
|||
| Linearity @ 450nm |
R2 ≥ 0.999, [0.0 – 3.0] |
|||
| Accuracy @ 450nm |
1.0% + 0.003 Abs (0 – 2.0] 2.0% (2.0 – 2.5 Abs |
|||
| Precision@450nm |
CV < 0.5% or SD<0.003 (Precision mode); CV < 1.0% (Fast mode) |
|||
| Stability@450nm |
< 0.005A , (0.0 – 2.0] < 2% (2.0 – 2.5 Abs) | |||
| Measurement speed |
96 well plate: <6 seconds (fast mode); <25 seconds (precision mode) 384 well plate: <74 seconds (only precision mode available for 384) |
|||
| Plate shaking |
Linear; three levels of shaking speed | |||
| Incubator |
From ambient + 5℃to 45℃ |
|||
| Temperature Uniformity |
± 0.5℃ @ 37℃ |
|||
| Storage |
16G memory, more than 10,000 test records can be stored |
|||
| Connection Ports |
3 USB ports, for PC, printer and USB-flash drive |
|||
| Power supply |
DC24V 6.5A |
|||
| Dimensions(W×D×H) |
300×500×260mm / 11.8 x 19.7 x 10.25 inches |
|||
| Weight |
15.5kg / 34 Lbs |
Intuitive, 10-inch color touch screen control panel
Accepts both 96 & 384-well plates
Monochromator-based system
• No filters required
• Wavelength range from 200 to 1000 nmStand-alone design
• No PC or special software required
• USB port for flash drive data transferMR9611 model includes a port for standard cuvette spectroscopy
