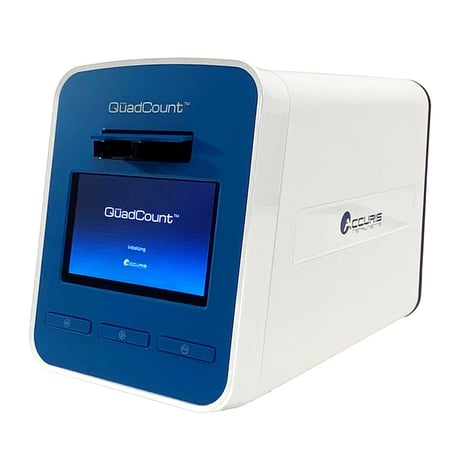

Accuris QuadCount™ Automated Cell Counter, 115V

The Accuris QuadCount™ revolutionizes cell counting through advanced brightfield microscopy enhanced with LED illumination, precision optics, and a high-resolution 5MP CMOS detector. This automated system eliminates the subjectivity and time constraints of manual hemocytometry, delivering fast, accurate, and reproducible results with count speeds as rapid as 20 seconds per sample. The innovative QuadSlide™ technology features unique 4-chambered disposable slides that process twice the capacity of standard 2-chambered alternatives, significantly reducing consumable costs while maintaining exceptional precision through hydrophilic inner surfaces and engraved grid patterns manufactured to rigorous dimensional tolerances.

Three distinct counting modes accommodate diverse analytical requirements: Quick Mode processes 0.15 µL samples in 20 seconds using single image capture, Normal Mode analyzes 0.9 µL samples in 30 seconds across 6 image frames, and Precise Mode examines up to 3.6 µL samples over 100 seconds using 24 image frames for maximum accuracy. The motorized XYZ positioning stage enables micron-level focus adjustments and multiple image capture capabilities, while the proprietary autofocus system ensures optimal focal plane selection for reliable viable cell detection. Advanced detection algorithms accurately identify irregularly shaped and aggregated cells that often challenge visual counting methods.

The intuitive touchscreen interface streamlines operation and data analysis, allowing users to easily adjust cell count parameters including size range gating, aggregation levels, and live/dead definitions. Real-time histogram displays provide comprehensive cell population statistics for individual or multiple chambers, while USB connectivity supports external peripherals including printers, keyboards, and data storage devices. Ideal for research laboratories, clinical settings, and biotechnology applications requiring consistent, bias-free cell counting, the QuadCount™ combines cutting-edge imaging technology with user-friendly operation to enhance laboratory efficiency and data reliability.

Pipette.com is an official distributor of Benchmark Scientific.

• Optics: High quality 4x objective lens
• Pixel Resolution: 2592 x 1944
• Image Detection: 5 mega pixel CMOS sensor
• Illumination: Green LED (50,000 hour life)
• Sample Volume: 20ul (4 samples per QuadSlide)
• Max. Counting Volume: 3.6ul (24 image captures)
• Consumable Slide: QuadSlide, 4-chamber
• Counting Modes/Speeds: Quick (20 sec), Normal (30 sec), Precise (100 sec)
• Dynamic Range: 1 x 104 to 1 x 107 cells per ml
• Cell Size Range: 5 to 60 um
• Data Output: USB drive for PDF report
• Dimensions: 6.4 x 11.5 x 8.5 inches / 16.3 x 29.3 x 21.6 cm
• Weight: 11 Lbs
• Electrical: 115V, 50-60Hz
