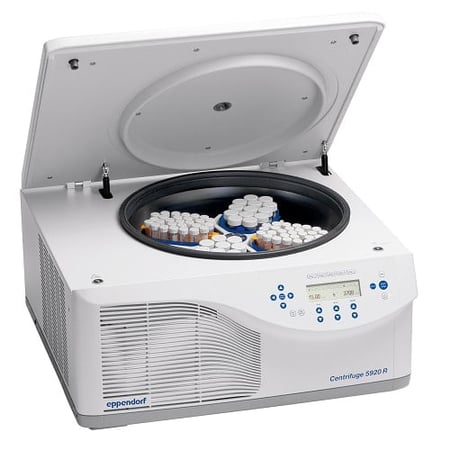

Eppendorf - refrigerated centrifuge 5920R
High capacity in a very compact and ergonomic product design centrifuges up to 21,194 × g
Product Description:
High capacity in a very compact and ergonomic product design centrifuges up to 21,194 × g
Eppendorf Centrifuge 5920 R delivers extraordinary high capacity in a very compact and ergonomic product design
It has similar dimensions as competing refrigerated 3 Liter models and yet features a superior capacity of up to 4 × 1,000 mL; making it the ideal instrument for high-throughput applications. It features a powerful state-of-the-art refrigeration system with advanced temperature management to keep your samples safe.
User Manuals
Eppendorf Centrifuge 5920 R Operating Manual
Instructions for Use- Eppendorf Rotors
Instructions for use - Adapter for Micro Fluidic Cards
Installation Guide - Centrifuges
Technical Specifications
| 5920 R | |
| Max. RCF | 21,194 × g |
| Max. RCF with fixed-angle rotor | 21,194 × g |
| Max. RCF with swing-bucket rotor | 4,800 × g |
| Speed | 200?–?13,700 rpm (10 rpm steps) |
| Max. capacity |
4 × 1,000 mL 4 × 7 MTP |
| Acceleration / braking ramps | 10 / 10 |
| Number of programs | 99 (5 program keys) |
| Timer | 10 s to 99 h 59 min, with continuous run function, short-s in |
| Power supply | 120 V, 50?–?60 Hz |
| Max. power consumption | 1,440 W |
| Dimensions (W?×?D?×?H) | 74?× 71?× 40 cm /td> |
| Height (with open lid) | 94 cm /td> |
| Weight w/o accessories | 139kg / d> |
| Cooling | Refrigerated |
| Temperature control range | -11 °C to 40 °C |
| Noise Level | |
| Rotor FA-6x50 | <60 dB(A) |
| S-4x Universal-Large | <55 dB(A) |
Advantages
- Universal buckets for both tubes and plates - both Rotor S-4x1000 with high-capacity buckets and Rotor S-4xUniversal-Large allow for both tubes and plates to be used in the same bucket.
- Time-saving: No need to exchange buckets
- Cost saving: No need for separate plate buckets
- Space saving: No need to store different buckets
- 4 Liter capacity
- Centrifuge 5920 R accommodates standard 1 liter Nalgene® bottles setting a new standard in the table top centrifuge segment. Compared to other custom-made 1 liter bottles the Nalgene bottle is narrow and allows for a better pellet compared to wider bottles. The higher capacity enables you to process a higher volume in fewer runs.
Advanced operating system
- Centrifuge 5920 R comes with a modern operating system with outstanding functionality
- Menu-driven, multi-lingual operation menu with large backlit display
- Saves up to 99 user-defined programs
- 5 program keys for easy access to routine programs
- FastTemp pro® function for automated pre-cooling based on pre-programmable time and date
Features
- Swing-bucket rotors and adapters accommodate tubes and bottles from 0.2 mL to 1,000 mL
- Plate rotor options for centrifugation of all types of MTP, PCR or Deepwell Plates
- Fixed-angle rotors for high-speed molecular biology applications in tubes from 0.2 mL to 250 mL
- High centrifugation speed of up to 21,194 × g (13,700 rpm)
- Aerosol-tight Eppendorf QuickLock® caps and lids allow fast and ergonomic lid locking
- Centrifuge lid with soft-touch lid closure
- Quiet operation to improve your work environment
- Compact footprint saves valuable bench space
- Automatic rotor recognition and imbalance detection for maximum operational safety
- Temperature range from -11 °C to 40 °C
- FastTemp function for quick pre-cooling
- FastTemp pro® function allows for automatic pre-cooling based on pre-programmable time and date
- Continuous cooling maintains a constant temperature after the run has been completed – your samples stay cool
- ECO shut-off engages after 8 hours (adjustable) of non-use to reduce energy consumption and to extend compressor life
- Dynamic compressor control (DCC) technology for precise cooling performance
<
