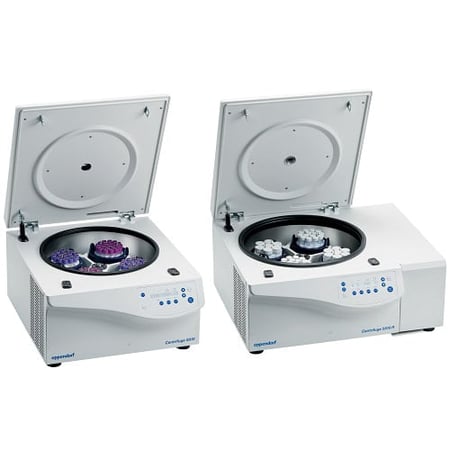

Eppendorf Centrifuge 5810 / 5810 R
Eppendorf Centrifuge 5810 and 5810 R feature powerful and maintenance-free motors, while also accommodating a variety of rotors to meet your application needs. They are three centrifuges in one: a high-capacity, general-purpose centrifuge for cell harvesting; a high-speed centrifuge for separating cell lysates; and a microcentrifuge for DNA precipitations.
Product Description:
Eppendorf Centrifuge 5810 and 5810 R feature powerful and maintenance-free motors, while also accommodating a variety of rotors to meet your application needs. They are three centrifuges in one: a high-capacity, general-purpose centrifuge for cell harvesting; a high-speed centrifuge for separating cell lysates; and a microcentrifuge for DNA precipitations.
Eppendorf 5810 and Eppendorf 5810 R Centrifuge – Ideal for Medium and High-throughput Laboratories
The Eppendorf 5810 Centrifuge and the Eppendorf 5810 R (Refrigerated) Centrifuge with their renowned quality and reliability offers you a cost-efficient solution for your medium to high-throughput applications – now and in the future. They combine extraordinary versatility and capacity for both tubes and plates with an extraordinary compact footprint. With the new rotor generation, the capacity of the Eppendorf 5810 and Eppendorf 5810 R Centrifuges increase to max. 4 × 750 mL (or max. 28 × 50 mL/56 × 15 mL). They are the most compact 3-liter centrifuge currently available – designed to fit in every lab. They have a low lid opening height for use under shelves and a low access height for easy loading/ unloading of tubes and bottles. The Eppendorf 5810 and 5810 R run quietly to benefit your work environment, and the centrifuge lid features a soft-touch lid closure mechanism.
Manual
Specifications
| 5810 | 5810 R | |
| Max. RCF | 20,913 × g | 20,913 × g |
| Max. RCF with fixed-angle rotor | 20,913 × g | 20,913 × g |
| Max. RCF with swing-bucket rotor | 4,500 × g | 4,500 × g |
| Max. RCF with plate rotor | 3,486 × g | 3,486 × g |
| Speed | 200?–?14,000 rpm (10 rpm steps) | 200?–?14,000 rpm (10 rpm steps) |
| Max. capacity | 4 × 750 mL/4 × 4 MTP | 4 × 750 mL/4 × 4 MTP |
| Rotors available | 18 | 18 |
| Acceleration/braking ramps | 10-Oct | 10-Oct |
| Number of programs | 35 user-defined programs | 35 user-defined programs |
| Timer | 1 min to 99 min, with continuous run function, short-spin | 1 min to 99 min, with continuous run function, short-spin |
| Noise level | < 70 dB(A) | < 56 dB(A) |
| Power supply | 120 V, 50?–?60 Hz | 120 V, 50?–?60 Hz |
| Max. power consumption | 900 W | 1,650 W |
| Dimensions (W?×?D?×?H) | 54?× 61?× 35?cm | 70?× 61?× 35?cm |
| Height (with open lid) | 80 cm | 80 cm |
| Weight w/o accessories | 68 kg | 99 kg |
| Cooling | non-refrigerated | refrigerated |
| Temperature control range | NA | -9 °C to 40 °C |
| Noise level | ||
| Rotor FA-45-6-30 (6×50 mL) | <56 dB(A) | <55 dB(A) |
| Rotor S-4-104 (4×750 mL) | <70 dB(A) | <56 dB(A) |
Eppendorf 5810 & Eppendorf 5810 R Centrifuge features & benefits:
- Swing-bucket rotors & adapters accommodate tubes & bottles from 0.2 mL to 750 mL
- Plate rotors for centrifugation of all types of MTP, PCR, cell culture or deepwell plates
- Fixed-angle rotors for high-speed applications in tubes from 0.2 mL to 85 mL
- High centrifugation speed of up to 20,913 × g (14,000?rpm)
- Aerosol-tight Eppendorf QuickLock® caps & lids for easy, one-hand operation
- Centrifuge lid with soft-touch lid closure
- Low access height of 29 cm for easy loading & unloading of samples
- Quiet operation to improve your work environment
- Compact footprint saves valuable bench space
- Automatic rotor recognition & imbalance detection for maximum operational safety
- Eppendorf 5810 R Refrigerated Centrifuge – additional features:
- Temperature range from -9 °C to 40 °C
- FastTemp function for fast pre-cooling
- Continuous cooling maintains a constant temperature after the run has been completed – your samples stay cool
- ECO shut-off engages after 8 hours of non-use to reduce energy consumption & to extend compressor life
- Dynamic compressor control (DCC) technology for optimized cooling performance
Popular Applications:
- Cell culture
- Bacteria culture
- Blood, plasma, platelet, & serum separations
- Molecular applications
- Plate centrifugations
Eppendorf 5810 Centrifuge & Eppendorf 5810 R Centrifuge Related Products:
- Eppendorf Microplate
- Eppendorf 5.0 mL Tube
- Eppendorf PCR Tubes
- Microcentrifuge Tubes
- Deepwell Plates

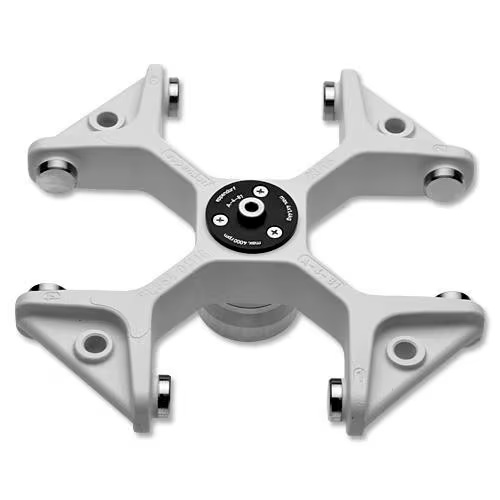

Centrifuge 5810 / 5810 R Rotor Options
Additional Features
Eppendorf QuickLock® caps for one–hand operation
- Significantly improved handling, easy operation with one hand
- Handle allows the closed bucket to be carried to the biosafety cabinet where it can be opened in a safe environment
- Arosol-tightness has been tested & verified by Public Health England, Porton Down, UK Centrifuge
Rolling cabinet
If space is a limited resource in your lab, Eppendorf’s rolling cabinet can give you the freedom & flexibility to use your Centrifuge 5804/5804 R or 5810/5810 R wherever you need it. Use the rolling cabinet if there is not enough space on the regular lab bench or to transport & use the centrifuge in other labs. The included drawer provides extra storage space for your rotors & adapters.
- Rolling cabinet with closed centrifuge fits under standard 90 cm lab benches
- With 4 castors (2 lockable) & drawer
- Dimensions: W×D×H: 70 × 62 × 45 cm / 27.5 x 24.2 x 17.7 in
