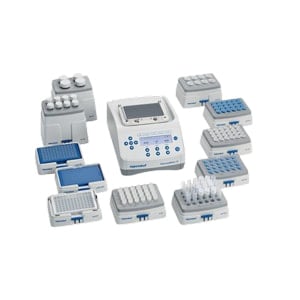

Eppendorf ThermoMixer C

Improve your assay results by incubating and mixing your samples simultaneously: The Eppendorf ThermoMixer C is for heating, cooling, and mixing almost any of your lab vessels and plate formats from 5 µL to 50 mL.

Condition:

Sorry, no results were found.

Reset Filters
Catalog # Description Quantity Price Add to Cart
5367000025

Eppendorf SmartBlock cryo, thermoblockfor 24 cryo tubes, max. 12.5 mm diameter

$807.00 $774.27
Add Eppendorf - 5367000025 to cart
5367000025

Eppendorf SmartBlock cryo, thermoblockfor 24 cryo tubes, max. 12.5 mm diameter

$807.00 $774.27
Add Eppendorf - 5367000025 to cart
5316000004

5316000004, 5316000004, Eppendorf Smart Block DWP 500 Thermoblock with Lid for Deep Well Plates 96/500 uL

$1,258.00 $1,174.13
Add Eppendorf - 5316000004 to cart
5316000004

5316000004, 5316000004, Eppendorf Smart Block DWP 500 Thermoblock with Lid for Deep Well Plates 96/500 uL

$1,258.00 $1,174.13
Add Eppendorf - 5316000004 to cart
5310000002

5310000002, 5310000002, Eppendorf Smart Block DWP 1000 Thermoblock with Lid for Deep Well Plate 96/1000 uL

$1,258.00 $1,174.13
Add Eppendorf - 5310000002 to cart
5310000002

5310000002, 5310000002, Eppendorf Smart Block DWP 1000 Thermoblock with Lid for Deep Well Plate 96/1000 uL

$1,258.00 $1,174.13
Add Eppendorf - 5310000002 to cart
5310000002

5310000002, 5310000002, Eppendorf Smart Block DWP 1000 Thermoblock with Lid for Deep Well Plate 96/1000 uL

$1,258.00 $1,174.13
Add Eppendorf - 5310000002 to cart
5382000023

ThermoMixer C, 120 V, 50/60 Hz, basic device without thermoblock

$4,704.00 $4,390.40
Add Eppendorf - 5382000023 to cart
5382000015

5382000015, Eppendorf ThermoMixer C, 220-240V, basic device without thermoblock, International

$4,704.00 $4,390.40
Add Eppendorf - 5382000015 to cart
5382000023

ThermoMixer C, 120 V, 50/60 Hz, basic device without thermoblock

$4,704.00 $4,390.40
Add Eppendorf - 5382000023 to cart
5382000015

5382000015, Eppendorf ThermoMixer C, 220-240V, basic device without thermoblock, International

$4,704.00 $4,390.40
Add Eppendorf - 5382000015 to cart
Show More Product Options

Product Description:

Improve your assay results by incubating and mixing your samples simultaneously: The Eppendorf ThermoMixer C is for heating, cooling, and mixing almost any of your lab vessels and plate formats from 5 µL to 50 mL.

Brochure

Brochure- Eppendorf Mixers and ThermoMixers

Manual

Eppendorf ThermoMixer C Operating Manual

Specifications

Eppendorf ThermoMixer® C
Max. speed 3,000 rpm¹
Max. temperature control range 100 °C
Min. temperature control range 15 °C
Mixing and vortexing radius 1.5 mm
Mixing frequency 300 – 3,000 rpm¹
Mixing orbit 3 mm
Temperature accuracy Max. ±0.5 °C at 20 – 45 °C
Temperature range Min: 15 °C (depends on SmartBlock used) below RT, max: 100 °C
Temperature settings 1 °C / 100 °C
Timer 15 sec to 99:30 h, continuous
Heating rate Max. 7 °C/min (when using SmartBlock plates)¹
Cooling rate Max. 2.5 °C/min between 100 °C and RT
Interfaces USB interface
Power supply 100 - 130 V, 50 - 60 Hz
Max. power consumption 200 W
Dimensions (W x D x H) 20.6 x 30.4 x 13.6 cm
Weight (w/o accessories) 6.3kg
Temperature range Min: 15 °C below RT, max: 100 °C ¹
¹ Depends on SmartBlock used

Technical & White Papers

ThermoMixer C Optional Heating Blocks

ThermoMixer C

Features & Benefits:

  • Mixing, heating, & cooling in one instrument for high flexibility
  • All common vessels & plate formats from 5 µL to 50 mL by different Eppendorf SmartBlocks for standard applications
  • Eppendorf SmartBlocks
    • Fast & simple block exchange due to Eppendorf QuickRelease
    • Optimized block design guarantees maximum temperature transfer to the sample
    • Individually sensor-controlled Eppendorf SmartBlocks allow for block-specific calibration
  • Excellent 2DMix-Control technology results in excellent sample mixing
    • Mixes liquids in a controlled, circular movement
  • Anti-spill technology prevents lid wetting & cross-contamination
  • Increased mixing frequency of up to 3,000 rpm for effective sample mixing
  • Excellent temperature management for maximum temperature accuracy, resulting in safe handling
  • Predefined program keys & clearly arranged menu guides enable simple & intuitive operations
  • Freely programmable program keys for individual optimization
  • Eppendorf PhysioCare Concept® provides ergonomic design & operation
  • Optional ThermoTop®
    • Prevents condensation formation on the tube lid & wall.
    • Guarantees constant reaction conditions for optimal enzymatic performance
    • Improves handling times, tubes don‘t have to be spun down at the end of the incubation
    • Optionally available for Eppendorf SmartBlocks 0.5, 1.5 & 2.0 mL as well as Eppendorf SmartBlocks plates & PCR 96 & PCR 384 – labeled with the condens.protect symbol
Thermomixer C B 400 Thermomixer C C 400

Application Examples:

  • Plasmid/RNA/DNA purification
  • cDNA synthesis
  • Extraction of DNA fragments from agarose gels
  • Enzymatic reactions (e.g., DNA restriction digestion, Proteinase K digestion & ligation)
  • Transformation of bacteria strains & plasmids
  • Denaturation of DNA, RNA & proteins
  • Labeling of DNA, RNA & proteins
  • Bacterial growth in microreaction vessels, conical tubes & deepwell plates
  • Lysis reactions at 100 °C
  • Mixing of PCR setups
