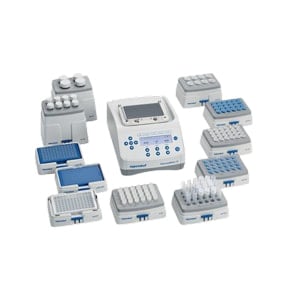

Eppendorf ThermoMixer F0.5, F1.5, and F2.0
The Eppendorf ThermoMixer F1.5 will simplify your lab routines. Whether you regularly work with 1.5 mL reaction vessels - the customized systems from Eppendorf offer you the perfect solution for your special applications. The Eppendorf ThermoMixer F1.5 combines precise heating and mixing with the highest stability, even at maximum mixing frequency.
Product description | Catalog # | Quantity | Price | |
---|---|---|---|---|
5363000233 |
|
$238.00 $222.13 |
||
5384000012 |
|
$3,557.00 $3,319.87 |
||
5384000012 |
|
$3,557.00 $3,319.87 |
||
5387000021 |
|
$3,696.00 $3,449.60 |
||
5387000021 |
|
$3,696.00 $3,449.60 |
||
5384000020 |
|
$3,696.00 $3,449.60 |
||
5386000028 |
|
$3,824.00 $3,569.07 |
||
5386000028 |
|
$3,824.00 $3,569.07 |
||
5386000028 |
|
$3,824.00 $3,569.07 |
||
5385000024 |
|
$4,014.00 $3,746.40 |
||
5385000024 |
|
$4,014.00 $3,746.40 |
Eppendorf ThermoMixer F0.5, F1.5, and F2.0 Product Description
The Eppendorf ThermoMixer F1.5 will simplify your lab routines. Whether you regularly work with 1.5 mL reaction vessels - the customized systems from Eppendorf offer you the perfect solution for your special applications. The Eppendorf ThermoMixer F1.5 combines precise heating and mixing with the highest stability, even at maximum mixing frequency.
Eppendorf ThermoMixer F0.5, F1.5, and F2.0
These Eppendorf Thermomixers are the perfect choice for mixing and heating established routine applications. The Eppendorf ThermoMixer F0.5/F1.5/F2.0 and FP have a fixed block for 0.5/1.5/2.0 mL tubes and plates, respectively. Reliable prevention of condensate formation in small vessels can be achieved with the heated lid Eppendorf ThermoTop (optional) which is available with these Eppendorf Thermomixers.
Eppendorf Thermomixers features and benefits:
- Heating and mixing in 0.5/1.5/2.0 mL reaction vessels (F0.5/F1.5/F2.0) or plates (FP)
- Up to 1,500 rpm (F1.5/F2.0) or 2,000 rpm (F0.5/FP) for efficient sample mixing
- Outstanding 2D Mix-Control technology results in excellent mixing performance
- Anti-spill technology prevents lid wetting and cross-contamination
- Compatible with Eppendorf ThermoTop (condens.protect®) for condensation-free sample handling
- Predefined temperature keys (37 °C, 42 °C, 56 °C, and 95 °C) for simple and intuitive operation
- Very fast heat up speed of up to 18 °C/min, reducing your waiting time
- Eppendorf PhysioCare Concept provides ergonomic design and operation
- Optional ThermoTop to reduce tube condensation
Eppendorf Thermomixers 2D Mix–Control
- The unique 2D Mix–Control technology of these Eppendorf Thermomixers mixes liquids in a controlled, circular movement. The Eppendorf ThermoMixer F provides enough mixing power to handle the most challenging mixing tasks. Most samples are efficiently mixed within less than a minute independent of vessel geometry or sample properties.
Eppendorf ThermoTop® condens.protect®
Now you can control the temperature of your samples with ease: The ThermoTop, with unique condens.protect technology, reliably prevents condensation formation on the tube lid and wall.
- Efficient and reliable condensation prevention on tube lid and wall
- Guarantees constant reaction conditions for optimal enzymatic performance
- Improves handling times, tubes do not have to be spun down at the end of the incubation
- Optionally available – labeled with the condens.protect symbol
Common applications:
- Growth of bacteria and yeasts
- Enzymatic reactions
- Transformation of bacteria strains and plasmids
- Denaturation of DNA, RNA, and proteins
- Lysis reactions at 100 °C
- Labeling of nucleic acids and proteins
- Proteinase K digestion of cells and tissues
- Resuspension of pellets
- Mixing protein quantification assays
- ELISA assays
Manual
Eppendorf ThermoMixer F1.5 FP Operating Manual
Specifications
Eppendorf ThermoMixer F1.5 | Eppendorf ThermoMixer FP | Eppendorf ThermoMixer F0.5 | Eppendorf ThermoMixer F2.0 | |
Max. speed | 1,500 rpm | 2,000 rpm | 2,000 rpm | 1,500 rpm |
Max. temperature control range | 100 °C | 100 °C | 100 °C | 100 °C |
Min. temperature control range | 24 °C | 24 °C | 24 °C | 24 °C |
Mixing and vortexing radius | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm |
Mixing frequency | 300 - 1,500 rpm | 300 - 2,000 rpm | 300 - 2,000 rpm | 300 - 1,500 rpm |
Mixing orbit | 3 mm | 3 mm | 3 mm | 3 mm |
Temperature accuracy | Max. ±0.5 °C at 20 – 45 °C | Max. ±0.5 °C at 20 – 45 °C | Max. ±0.5 °C at 20 – 45 °C | Max. ±0.5 °C at 20 – 45 °C |
Temperature settings | 1 °C / 100 °C | 1 °C / 100 °C | 1 °C / 100 °C | 1 °C / 100 °C |
Max. speed | 1,500 rpm | 2,000 rpm | 2,000 rpm | 1,500 rpm |
Timer | – | – | – | – |
Heating rate | Max. 11 °C/ in | Max. 18 °C/ in | Max. 15 °C/ in | Max. 13 °C/ in |
Cooling rate | – | – | – | – |
Interfaces | USB interface | USB interface | USB interface | USB interface |
Power supply | 100 - 130 V, 50 - 60 Hz | 100 - 130 V, 50 - 60 Hz | 100 - 130 V, 50 - 60 Hz | 100 - 130 V, 50 - 60 Hz |
Max. power consumption | 200 W | 200 W | 200 W | 200 W |
Dimensions (W x D x H) | 20.6 x 30.4 x 17.0 cm | 20.6 x 30.4 x 16.4 cm | 20.6 x 30.4 x 16.3 cm | 20.6 x 30.4 x 17.0 cm |
Weight w/o accessories | 6.3kg | 6.1kg | 6.2kg | 6.3kg |
Temperature range | Min: 4 °C above RT, max: 100 °C | Min: 4 °C above RT, max: 100 °C | Min: 4 °C above RT, max: 100 °C | Min: 4 °C above RT, max: 100 °C |
