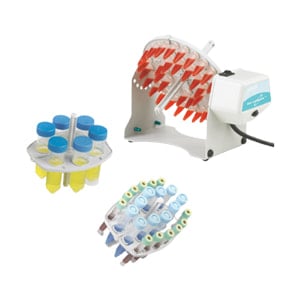

Labnet Mini LabRoller Dual Format Rotator

Simple, yet versatile, the Mini LabRoller Rotator is designed for mixing samples in both a horizontal and vertical plane. The unit accepts a broad assortment of tube sizes as well as micro plates.

Condition:

Sorry, no results were found.

Reset Filters
Catalog # Description Quantity Price Add to Cart
H5500

Labnet Mini LabRoller Dual Format Rotator With Rotisserie for 36x 1.5/2.0mL Microcentrifuge Tubes | 24 rpm Fixed Speed | Rotating, Rocking & Tumbling Motions | 120V

$480.16 $465.75
Add Labnet - H5500 to cart
Show More Product Options

Product Description:

Simple, yet versatile, the Mini LabRoller Rotator is designed for mixing samples in both a horizontal and vertical plane. The unit accepts a broad assortment of tube sizes as well as micro plates.

MINI LABROLLER ROTATOR User Manual

Specifications

H5500

H5500-15

H5500-50

Dimensions (W x D x H)

8.4 x 4 x 5 in/21.3 x 10.2 x 12.6 cm /span>

8.4 x 4 x 5 in/21.3 x 10.2 x 12.6 cm /span>

8.4 x 4 x 5 in/21.3 x 10.2 x 12.6 cm /span>

Operating conditions

+4° to 55°C, up to 85% RH non-condensing

+4° to 55°C, up to 85% RH non-condensing

+4° to 55°C, up to 85% RH non-condensing

Speed

24 rpm

24 rpm

24 rpm

Motion

Rotating, rocking & tumbling

Rotating, rocking & tumbling

Rotating, rocking & tumbling

Tube Capacity

36x1.5/2.0ml micro tubes

10x15ml conical (15-17mm); 15x5ml (12-13mm diameter) tubes

6x50ml conical tubes

Wide range of motion

The Mini LabRoller Rotator is uniquely designed so that the level of agitation can be adjusted from gentle rolling, through two levels of tumbling, to forceful end over end mixing simply by changing the rotisserie position.

When a rotisserie is inserted horizontally (tubes held vertically), an end over end motion is produced. The unit can then be used for simple rotating, or rested on either end to create a tumbling motion. Placing the Mini LabRoller on the end with the power switch will create a more vigorous tumbling motion than resting it on the opposite end. A rocking motion is achieved by simply inserting pegs to limit the movement of the rotisserie to 20°, 45°, or 60°. Any of the three available rotisseries can be used as a rocking platform.

Using the supplied rod, the rotisseries may be mounted vertically (tubes held horizontally). In all configurations, the speed of the rotisserie is fixed at 24rpm. Interchangeable rotisseries hold numerous tube sizes.

The Mini LabRoller Rotator is supplied with a rotisserie for 36 x 1.5 or 2.0 ml tubes. Two additional rotisseries are available separately. The first accommodates ten conical 15 ml or other tubes with a 15-17 mm diameter as well as twelve tubes with a 12-13 mm diameter. The second holds six 50 ml conical tubes. Microplates can be used on any of the three rotisseries. Wide range of applications.

With three rotisserie configurations, dual rotisserie positions & the ability to change the position of the unit to produce a wide range of motions, the Mini LabRoller Rotator has applications in a variety of areas. Its compact size allows it to be used in combination with Labnet's Mini Incubator, for a compact temperature controlled mixing solution. In addition to its small size, the Mini LabRoller is quiet & economical, making it an excellent value.

Features

  • Compact design
  • Wide selection of motions
  • Noiseless operation
  • Cold room compatible
  • Dual format rotisseries
  • Three easily interchangeable rotisseries
  • Holds various size tubes:
  • 36 x 1.5 / 2.0ml
  • 10 x 15ml & 12 x 5ml
  • 6 x 50ml
  • 2 x 96 well plates
