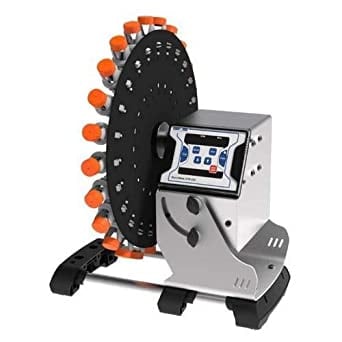

Oxford Lab Products Digital Tube Rotator

The Oxford Lab Products Digital Tube Rotator is ideal for a variety of laboratory applications that require the gentle mixing of biological samples, such as the mixing of blood samples in blood collection tubes to prevent coagulation, immunoprecipitation, latex agglutination assays, preparation of homogenous dispersions (the mixing of powdered/solid and liquid samples). The Oxford Lab Products Digital Tube Rotator is a versatile tube rotator for high-throughput labs with a small benchtop footprint.

Condition:

SELECT A CONDITION:

New:

This product has not been previously used, and is in pristine condition.

Refurbished:

This product has been previously used or returned. It has undergone a thorough process of inspection and restoration to bring it to a nearly-new condition.

REFURBISHED: Fully refurbished to as new condition with one year warranty and certificate of conformity. Additional ISO 17025 accredited PLUS service can be purchased separately. *calibration report upon request
NEW: Brand new pipete, comes in original box with manufacturer calibration certificate; covered by manufactured warranty.
ALL
View New Below

Sorry, no results were found.

Reset Filters
Product description Catalog # Quantity Price

OTR-24D-15T

$115.00

$109.25

OTR-24D

$749.00

$636.65

Add Oxford Lab Products - OTR-24D to cart

Oxford Lab Products Digital Tube Rotator Product Description

The Oxford Lab Products Digital Tube Rotator is ideal for a variety of laboratory applications that require the gentle mixing of biological samples, such as the mixing of blood samples in blood collection tubes to prevent coagulation, immunoprecipitation, latex agglutination assays, preparation of homogenous dispersions (the mixing of powdered/solid and liquid samples). The Oxford Lab Products Digital Tube Rotator is a versatile tube rotator for high-throughput labs with a small benchtop footprint.

Brochure

Brochure

Manual

User_Manual

Technical Specifications:

Motor Type

Brushless DC Motor

Motion Type

Rotating

Speed Range

10 rpm to 80 rpm

Speed Accuracy

± 1 rpm

Speed Steps

1 rpm Increment

Time Range

Timed from 1 to 99 minutes, or Continuous

Variable Disc Angle

0° to 90°

Max. Loading Capacity

2kg

Removable Disc Plates

Yes, 3 Options Available

Protection Class

IP 21

Permissible Ambient Temp.

5°C to 40°C

Permissible Relative Humidity

< 80%

Permissible Air Pressure

80 to 106 kPa

Dimensions

382 x 330 x 320

Input Voltage

100 – 240 V AC, 50/60 Hz

Output Voltage

24 V DC

Power Consumption

45 W

Oxford Lab Products Digital Tube Rotator features & benefits:

  • Three different disc plate options for different tube diameters. The Disc Plate for 12 x 50 mL Tubes (OTR-24D-50T) is included with your instrument.
  • Removable disc plates for proper cleaning & better contamination protection.
  • Adjustable rotational speed ranging from 10 to 80 rpm, increasing in 1 rpm increments & with an accuracy of +/- 1 rpm.
  • Adjustable run-time ranging from 1 to 99 minutes, or infinite mode.
  • Adjustable rotational angle from 0 to 90 degrees.
  • Pulse mode function for alternating clockwise & counter-clockwise rotations at 2-second intervals for the most thorough mixing requirements.
  • “Auto Power On” option in case of power failure. This means that mixing will resume automatically once power is restored & run for the remaining time on the timer.
  • Digital display for easy program set-up.
  • Maintenance free brushless DC motor for quiet operation & long operational life.
  • Small footprint for optimal use of available laboratory space.
  • 3 Year Manufacturer Warranty
