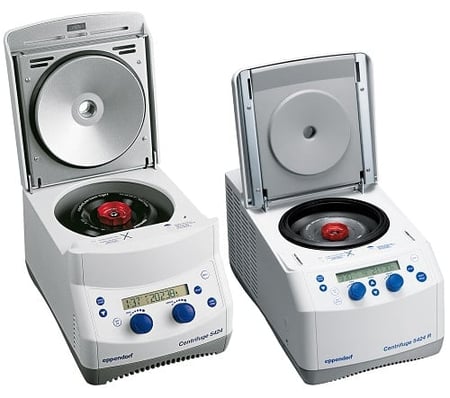

Eppendorf - centrifuge 5424 and 5424R with Keypad or Knobs
Eppendorf Centrifuge 5424 has 24–place capacity and a maximum speed of up to 21,130 × g is perfect for all molecular biology applications using microcentrifuge tubes, PCR tubes, and spin columns.
| Product description | Catalog # | Quantity | Price | |
|---|---|---|---|---|
|
22620444R |
|
$2,850.00 $1,695.00 |
||
|
22620401R |
|
$2,850.00 $1,695.00 |
||
|
005404000014-ref |
|
$6,800.00 $4,800.00 |
Product Description:
Eppendorf Centrifuge 5424 has 24–place capacity and a maximum speed of up to 21,130 × g is perfect for all molecular biology applications using microcentrifuge tubes, PCR tubes, and spin columns.
Eppendorf 5424 and Eppendorf 5424R
The Eppendorf 5424 Centrifuge will fit into your laboratory:
The Eppendorf 5424 Centrifuge is a fast, accurate, and durable. Their 24-place rotor with a maximum speed up to 21,130 × g in a compact footprint is a great centrifuge for laboratories. They are perfect for molecular biology applications in microcentrifuge tubes, spin columns, and PCR tubes.
Do you need a different centrifuge? View all Eppendorf Centrifuges.
Tube Racks Automatically Included
Eppendorf 5424 Centrifuge Brochures
5424 Centrifuge Manuals
Eppendorf 5424, 5424 R, and 5425 Centrifuge Specifications
|
Eppendorf Microcentrifuge 5424 |
Eppendorf Microcentrifuge 5424 R |
Eppendorf 5425 Centrifuge |
|
| Max g-force | 21,130 rcf | 21,130 rcf | 21,330 rcf |
| Speed range | 100-15,000 rpm | 100-15,000 rpm | 100 - 15,060 rpm |
| Capacity | 24 x 1.5/2.0 mL tubes | 24 x 1.5/2.0 mL tubes | 24 x 1.5/2.0 mL tubes |
| Number of rotors | 4 | 4 | 6 |
| Capacity for 1.5 mL tubes | 24 | 24 | 24 |
| Refrigeration | No | Yes | No |
| Temperature control range | N/A | -10°C to 40°C | NA |
| Power supply | 120 V, 50/60 Hz | 120 V, 50/60 Hz | 120 V, 50/60 Hz |
| Power consumption | Max. 250 W | Max. 350 W | Max. 280 W |
| Acceleration time to max speed | 15 s (in FA-45-24-11) | 15 s (in FA-45-24-11) | 15 seconds |
| Braking time from max speed | 16 s (in FA-45-24-11) | 16 s (in FA-45-24-11) | 15 seconds (in FA-21x2) |
| Acceleration/Brake speed settings | 2 | 2 | 10 |
| Timer | 30 s to 9:59 h, with continuous run function | 30 s to 9:59 h, with continuous run function | 10 s to 9:59 h, with continuous run function |
| Noise level | <51 dB(A) | <54 dB(A) | < 51 dB(A) |
| Dimensions (W x D x H) | 24 x 32 x 23 cm /td> | 29 x 48 x 26 cm /td> | 24?× 39?× 24 cm /td> |
| Height with lid open | 44 cm /td> | 51 cm /td> | 48 cm /td> |
| Weight | 29.5 lb / 13.4kg / d> | 46.3 lb / 21kg / d> | 15.6kg / d> |
Eppendorf 5424 and Eppendorf 5424R Centrifuge Rotor Options
5424 Eppendorf Centrifuge Features and Benefits:
-
Max. rotor capacity: 24 × 1.5/2.0 mL vessels
-
Max. speed: 20,238 × g (14,680 rpm)
-
OptiBowl® design for quiet operation, even without a rotor lid
-
Soft-touch one-finger lid closure for ergonomic operation
-
SOFT brake to protect sensitive samples
-
Full digital display with time and speed display
-
For spin columns kits, the Eppendorf 5424 Kit rotor® with raised rim (Cat# 022653083) solves the issue of open tube caps shearing off during the elution step.
-
Separate short-spin key for quick centrifugation
-
Automatic lid opening at the end of the run – prevents sample warming and allows easy access to samples (only centrifuge 5424, non-refrigerated)
-
Certified aerosol-tight rotor comes standard for safe centrifugation of hazardous samples
-
Available as a rotary knob version for fast parameter selection, or keypad version for easy cleaning
-
Additional Features of the 5424R:
-
Temperature range from -10 °C to +40 °C
-
Guaranteed temperature of 4 °C at maximum rotational speed
-
FastTemp function for quick pre-cooling of the centrifuge (from 21 °C to 4 °C in only 8 minutes)
-
ECO power shut-off engages after 8 hours of non-use to reduce energy consumption (40 % over night) and extend compressor life (can be deactivated)
-
The patented compressor technology reduces vibrations and protects your samples
-
Built-in condensation drain to eliminate water accumulation in the rotor chamber
-
-
The Eppendorf Centrifuge 5424 and 5424R is the replacement of Model 5415 D and 5415 R.
Eppendorf Centrifuge Kit rotor® (F-45-18-11-Kit) for 18 x spin columns and 1.5/2.0 mL tubes (max. 18,111 x g)
This unique rotor offers a solution for a common problem when working with MiniPrep spin column kits: open tube lids that shear off during the elution step. This problem traditionally occurs because standard rotors do not provide enough support for open tube lids during centrifugation. The Eppendorf Kit rotor is designed with an extended rim that serves as a rest for tube caps during centrifugation and protects them from shearing off. Your tube lids will not tear off anymore.
