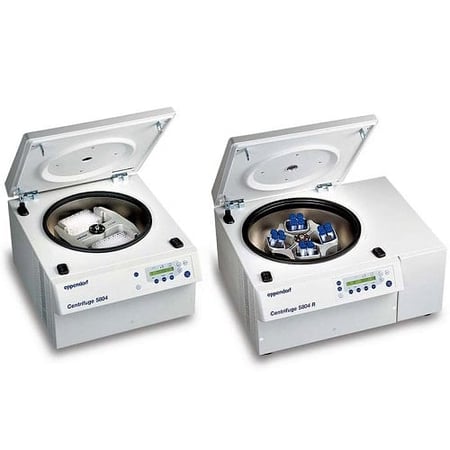

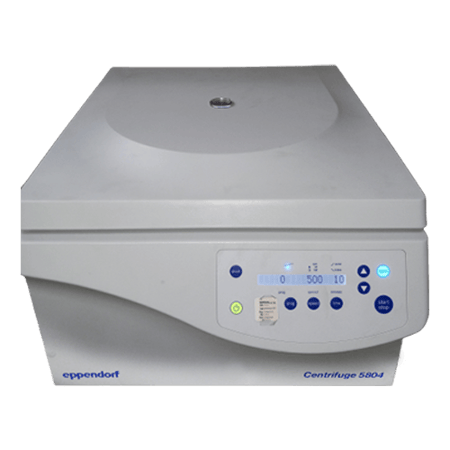

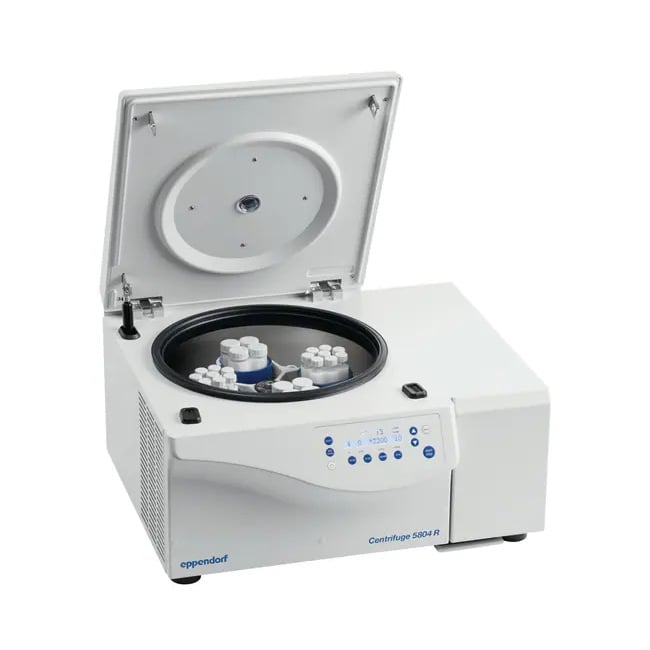

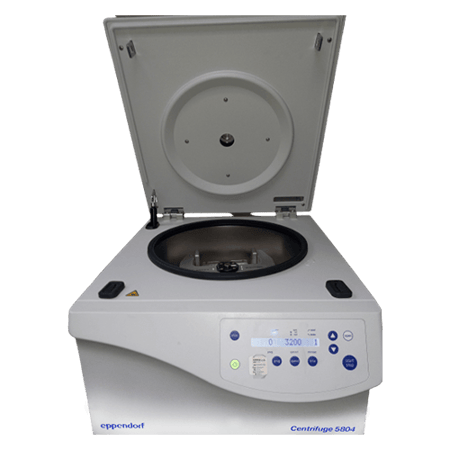

Eppendorf Centrifuge 5804 / 5804 R
The Eppendorf Centrifuge 5804 and Eppendorf 5804 R are high-speed centrifuges for medium capacity needs. Eppendorf Centrifuge 5804 / 5804 R allows for molecular applications in tubes up to 250 mL and offers additional swing-bucket and fixed-angle rotors as well as deepwell plate capacity for increased versatility.
Product Description:
The Eppendorf Centrifuge 5804 and Eppendorf 5804 R are high-speed centrifuges for medium capacity needs. Eppendorf Centrifuge 5804 / 5804 R allows for molecular applications in tubes up to 250 mL and offers additional swing-bucket and fixed-angle rotors as well as deepwell plate capacity for increased versatility.
Versatile and Reliable Centrifuge
Eppendorf Centrifuge 5804/5804 R with its renowned quality and reliability offers you the most cost efficient solution for your medium throughput applications–now and in the future. It allows for molecular applications in tubes up to 250 mL and offers additional swing-bucket and fixed-angle rotors as well as deepwell plate capacity for increased versatility.
Why the Eppendorf Centrifuge 5804 / 5804 R?
Centrifuge 5804 / 5804 R is a high-speed centrifuge ideal for medium capacity applications. It is incredibly versatile as it allows for molecular applications in tubes up to 250 mL as well as deepwell plates to centrifuge quickly and efficiently. Both models are designed to operate at low noise levels, designed with a soft touch lid and low profile for greater comfort and security in your results. Eppendorf Centrifuge 5804 / 5804 R are the benchmark in ergonomic operation.
Centrifuge 5430/5430 R Supplementary Products
Manual
Specifications
| 5804 | 5804 R | |
| Max. RCF | 20,913 × g | 20,913 × g |
| Max. RCF with fixed-angle rotor | 20,913 × g | 20,913 × g |
| Max. RCF with swing-bucket rotor | 4,500 × g | 4,500 × g |
| Max. RCF with plate rotor | 2,250 × g | 2,250 × g |
| Speed | 200?–?14,000 rpm (10 rpm steps) | 200?–?14,000 rpm (10 rpm steps) |
| Max. capacity | 4 × 250 mL/ | 4 × 250 mL/ |
| 2 × 5 MTP | 2 × 5 MTP | |
| Rotors available | 12 | 12 |
| Acceleration/braking ramps | 10-Oct | 10-Oct |
| Number of programs | 35 user-defined programs | 35 user-defined programs |
| Timer | 1 min to 99 min, with continuous run function, short-spin | 1 min to 99 min, with continuous run function, short-spin |
| Noise level | < 62 dB(A) | < 58 dB(A) |
| Power supply | 120 V, 50?–?60 Hz | 120 V, 50?–?60 Hz |
| Max. power consumption | 900 W | 1,650 W |
| Dimensions (W?×?D?×?H) | 47?× 55?× 34?cm | 64?× 55?× 34?cm |
| Height (with open lid) | 74 cm | 74 cm |
| Weight w/o accessories | 55 kg | 80 kg |
| Cooling | non-refrigerated | refrigerated |
| Temperature control range | NA | -9 °C to 40 °C |
Eppendorf 5804 Centrifuge Rotor Options
Additional Features
Rotor S–4–72
- Medium capacity swing-bucket rotor with speed up to 3,234 × g (4,200 rpm)
- Broad range of adapters available to handle all common tube formats from 0.2 mL to 250 mL
- Aerodynamic round bucket design for up to 48 % energy savings compared to Rotor A–4–62
- Buckets & adapters are autoclavable
Rotor FA–45–6–30 (6x50 mL) with Eppendorf QuickLock® lid
- Max. speed 20,130 × g (12,100 rpm) in Centrifuge 5810 R or 16,639 × g (11,000 rpm) in 5804/5804R/5810
- Eppendorf QuickLock rotor lid for fast lid locking
- Aerosol-tight for safe centrifugation of hazardous samples
- Low rotor weight (3.2 kg) for easy lifting
- 45° borehole angle minimizes pellets smear along tube wall
Rolling Cabinet
If space is a limited resource in your lab, Eppendorf’s rolling cabinet can give you the freedom & flexibility to use your Centrifuge5804/5804 R or 5810/5810 R wherever you need it. Use the rolling cabinet if there is not enough space on the regular lab bench or to transport & use the centrifuge in other labs. The included drawer provides extra storage space for your rotors & adapters.
- Rolling cabinet with closed centrifuge fits under standard 90 cm lab benches
- With 4 castors (2 lockable) & drawer
- Dimensions: W×D×H: 70 × 45 × 62 cm / 27.5 x 17.7 x 24.2 in
