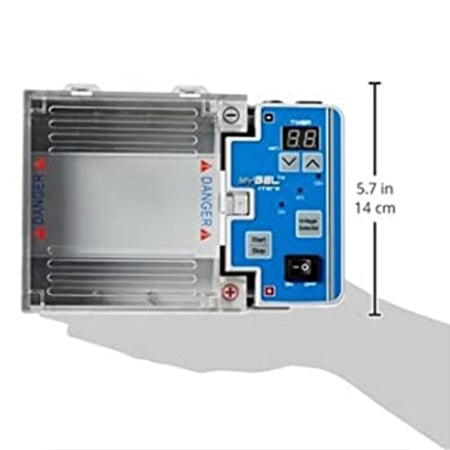

Benchmark - accuris mygel mini electrophoresis system
Ideal for personal use, small laboratories or the classroom, this gel box/power supply combination is compact and easy to use. The Benchmark Accuris myGel Mini electrophoresis system includes all of the equipment that you need to get up and running - gel tank, power supply and two casting sets.
| Product description | Catalog # | Quantity | Price | |
|---|---|---|---|---|
|
E1101-COMB1 |
|
$9.50 $8.81 |
||
|
E1101-COMB2 |
|
$12.14 $11.25 |
||
|
E1101-CS1 |
|
$48.70 $45.16 |
||
|
E1101-CS2 |
|
$78.74 $73.02 |
||
|
E1101 |
|
$636.38 $590.09 |
||
|
E1101-E |
|
$665.55 $617.14 |
||
|
E1101-SK |
|
$727.06 $674.18 |
||
|
E1101-SK-E |
|
$757.35 $702.27 |
Product Description:
Ideal for personal use, small laboratories or the classroom, this gel box/power supply combination is compact and easy to use. The Benchmark Accuris myGel Mini electrophoresis system includes all of the equipment that you need to get up and running - gel tank, power supply and two casting sets.
Benchmark Accuris myGel Mini Electrophoresis System
The Benchmark Accuris myGel mini gel box attaches directly to the power supply for a secure connection every time. Selectable parameters include 3 preset voltages - 35V, 50V or 100V - and a 99-minute timer giving you full control. All are easily set using the membrane keypad. The safety lid of the Benchmark Accuris myGel Mini Electrophoresis System is vented to help dissipate heat generated during electrophoresis and features a viewing area above the gel. Current will only run through the system when the lid is properly in place on top of the gel box for increased safety. Trays and casting stands for both 10.5 x cm and 5 x cm gels are included with the Benchmark Accuris myGel Mini electrophoresis system, as are double-sided combs. The smaller tooth combs are compatible with multichannel pipettes. Casting is quick and easy - just place the tray in the casting stand and pour. The trays feature a dark contrast strip to help visualize wells while loading and lines that fluoresce under UV and blue light to track the progress of the run. Benchmark Accuris myGel Mini Electrophoresis System is one the most convenient, easy to use electrophoresis gel tank systems with snap-In power supply.
More Benchmark Transilluminators and Thermocyclers:
- Benchmark Accuris SmartBlue Blue Light Transilluminator
- SmartDoc 2.0 Gel Imaging System by Accuris
- Benchmark Accuris E3000 UV Transilluminator
- Benchmark TC-9639 Gradient Thermal Cycler
- Benchmark TC 32 Mini Thermal Cycler
Often Bought Together:
Technical Specifications
| Dimensions | 7.5W x 5.1D x 2.1H in (190.5 x 129.54 x 53.34 mm) |
| Electrical | 115V, 50-60 Hz/230V, 50-50Hz |
| Output Voltage | 35V, 50V or 100V |
| Timer | 0-99 minutes or continuous |
| Max. Buffer Volume | 230 mL |
| Gel Capacity | One 10.5 x 6 cm or Two 5 x 6 cm /td> |
| Weight | 1 lb. (.45 kg) |
| Safety | Magnetic and mechanical lid interlock |
Benchmark Accuris myGel Mini Electrophoresis System features and benefits:
- Includes: gel box, safety lid, power supply, two 1.5 x 6 cm and four 5 x 6 cm gel trays, casting stands for gel trays and two double-sided combs for each gel size
- Smaller tooth combs compatible with multichannel pipettes
- Power supply connects to gel box
- Selectable parameters: 35V, 50 V and 100
- 0-99 minutes or continuous timer
- Vented, clear safety lid dissipates heat generated during electrophoresis
- Unit runs when lid is securely in place
- Dark contrast strip on tray helps visualize wells when loading
- Two-Year Manufacturer Warranty
