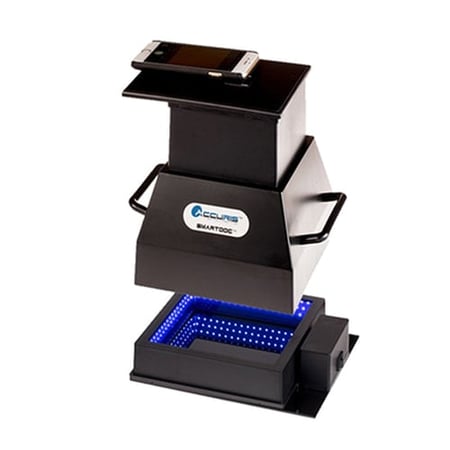

Benchmark Accuris SmartDoc 2.0 Gel Imaging System
Complete system developed to capture quality digital images of DNA bands with a smart phone.
| Product description | Catalog # | Quantity | Price | |
|---|---|---|---|---|
|
E5001-SDB-E |
|
$868.15 $246.95 |
||
|
E5001-SD |
|
$466.65 $429.71 |
||
|
E5001-SDB |
|
$868.15 $757.90 |
Benchmark Accuris SmartDoc 2.0 Gel Imaging System Product Description
Complete system developed to capture quality digital images of DNA bands with a smart phone.
SmartDoc™ Imaging System for Safely Viewing Nucleic Acids in Gels
The illumination base of the SmartDoc 2.0 by Accuris emits an intense blue light with a peak output of 460nm for optimum excitation of nucleic acids stained with green fluorescent dyes. Accuris’s SmartDoc imaging system is commonly used for dyes that include SYBR® Green, SmartGlow™, GelStar™, and GelGreen™. The orange cover fits on top of the illumination base and acts as a filter to absorb blue light, allowing visualization of the fluorescing samples. The cover can also be set at an angle for gel access and cutting out DNA bands for further study.
The SmartDoc 2.0 imaging system’s enclosure includes an orange photo filter for photography of the gels with a smartphone. An extending adapter can be inserted for full dimension imaging of gels up to 15 x 15 cm or removed for close pictures. The enclosure can also be used directly on any other existing UV or blue light transilluminator. Additional filters are available for imaging gels on a UV transilluminator.
Benchmark Electrophoresis Equipment
- Benchmark Accuris myGel Mini Electrophoresis System
- Benchmark Accuris MyVolt Mini Power Supply
- Benchmark Accuris MyVolt Touch Electrophoresis Power Supply
Benchmark Transilluminators
Often Bought Together
E5001 SmartDoc 2.0 Filter and User Guide
Technical Specifications
|
Maximum Gel Size: |
15 x 1 cm /span> |
|
Excitation Source: |
High Intensity Blue LED |
|
Photo Filter: |
Orange PMMA, 12mm Aperture |
|
Viewing Cover: |
Orange PMMA, 18 x 18 cm /span> |
|
Phone Compatibility: |
iPhone™, Android™, etc. (Smart phones and tablets with a camera) |
|
Dimensions (W x D x H): |
9 x 7.5 x 8.6 in / 23 x 19 x 22 cm /span> |
|
Weight: |
2.6 Lbs (1.2 kg) |
|
Electrical: |
100V to 230V, 50Hz to 60Hz |
|
Warranty: |
2 years |
Product Information
| Cat No. | Description |
| E5001-SD | SmartDoc 2.0 Imaging System |
| E5001-SDB | SmartDoc2.0 Imaging System with blue light illumination base, US plug |
| E5001-MAT | SmartDoc 2.0 UV Blocking Mat |
| E5001-535 | 535nm Narrow Band Pass Filter Cassette for SmartDoc |
| E5001-590 | 590nm Narrow Band Pass Filter Cassette for SmartDoc |
| E5001-ORANGE | Orange photo filter, for imaging with green stains on blue light illuminators |
| E5001-OC | Orange viewing cover |
Innovative Features:
- Blue light is used instead of UV, which is safer for lab personnel & will not damage DNA samples.Imaging enclosure works with all common smartphones
- System includes blue light illumination base
- Ideal for common safe stains (SmartGlow™, SYBR Green, GelGreen™, etc.)
- Visible blue light will not damage DNA
- Gel viewing & gel access for DNA band cutting
- Imaging enclosure can also be used on existing transilluminators
