Benchmark - accuris smartblue blue light transilluminator
Bluelight is perfect for visualizing nucleic acids with the new fluorophors replacing Ethidium bromide.
Product description | Catalog # | Quantity | Price | |
---|---|---|---|---|
E4100-AC |
|
$34.37 $26.78 |
||
E4000-AC |
|
$43.96 $40.49 |
||
E4100-E |
|
$491.64 $452.72 |
||
E4100 |
|
$491.64 $452.72 |
||
E4000 |
|
$665.24 $612.58 |
||
E4000-E |
|
$665.24 $612.58 |
Benchmark - accuris smartblue blue light transilluminator Product Description
Bluelight is perfect for visualizing nucleic acids with the new fluorophors replacing Ethidium bromide.

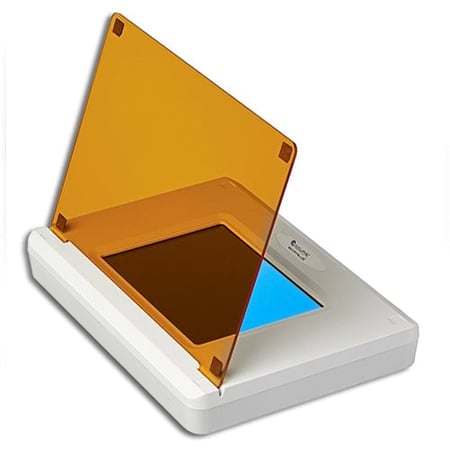

SmartBlue™ Blue Light Transilluminator
New fluorophors have been developed to replace the traditional method of nucleic acid detection with toxic Ethidium bromide. They also eliminate the use of DNA damaging UV light, as they are visualized with blue light. The SmartBlue Transilluminator is the perfect partner for these new stains. It emits blue light at a wavelength of 465nm, perfect for excitation of most green fluorophors, including Accuris' SmartGlow™, as well as many protein stains. Exposing DNA to this wavelength does not cause damage, and results in a much higher down stream cloning efficiency as compared to even short UV light exposures. In addition, the visible blue light of the SmartBlue Transilluminator is not damaging to the skin, and less harmful than UV to the eyes*
*Due to the high intensity of the LED lights, it is recommended not to stare directly at the viewing surface without the amber cover in place.
More Benchmark Thermocyclers and Transilumantors
- Benchmark Accuris E3000 UV Transilluminator
- Benchmark TC-9639 Gradient Thermal Cycler
- Benchmark TC 32 Mini Thermal Cycler
Don’t Forget PCR Reagents
Compatible with SmartDoc™ 2.0 Gel Imaging System
Do you also need an electrophoresis system?
SmartBlue™ Blue Light Transilluminator Brochure
Specifications
- Light source: High intensity LEDs
- Output wavelength: Peak at 465nm
- Filter cover: Amber, for filtering of blue light
- Viewing surface: 6.6x4.75 in/17x12 cm /li>
- Exterior dimensions: 12.8x8.5x1.9 in/30.5x21.5x5 cm /li>
- Weight: 1.2 kg/2.6 lb
- Electrical: 100-240V, 50/60Hz
- Warranty: 2 years
Blue light, safe for nucleic acids
- Uniform illumination (UI Technology) for bright, clear pictures
- Engineered diffusers and filters provide an extremely evenly lit viewing surface. Even in ambient light, bands of DNA can clearly be seen in gels. Images obtained using the SmartBlue Transilluminator are brighter and more balanced than those obtained using epi-illiminators which light from the sides.
- Optimal wavelength (465) for green stains
- Easily removable, 2 position amber shield
- Requires no special shielding- the amber cover, which rests above the viewing surface and gel, filters out the blue light, allowing the bands to be seen clearly. The cover can be placed at a 60º angle to provide easy access to the gel for band excision. For documentation, the filter cover is easily removed completely.
- Reliable, durable and long lasting
- An array of super bright LEDs with a long, 30,000 hour service life provide the light source for the SmartBlue Transilluminator. Unlike those in a UV Transilluminator, the filters in the SmartBlue will not solarize and degrade in performance over time.
- Gel bands can be excised directly on the scratch resistant, glass viewing surface.
- To save energy, the power switch includes an automatic 5 minute shutoff.
- The SmartBlue Transilluminator is covered by a 2 year warranty.
Ordering Information
E4000: SmartBlue Transilluminator, includes amber filter cover, 120V
E4000-E: SmartBlue Transilluminator, includes amber filter cover, 240V
E4500-PS: SmartGlow Pre-stain for nucleic acid gels
E4500-LD: SmartGlow Loading dye with stain for nucleic acid gelsin
E4000-AC: Replacement Amber Cover
