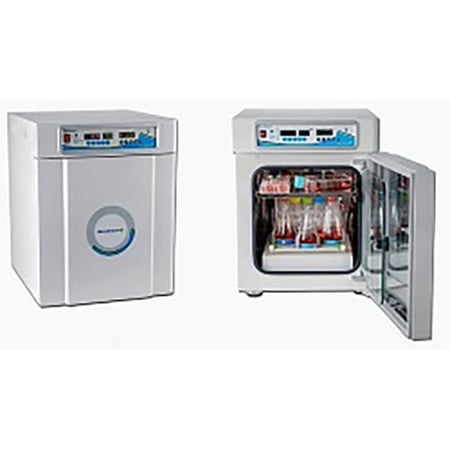

Benchmark Mini CO2 Shaking Incubator
The Benchmark Mini CO2 Shaking Incubator is designed to control CO2 density, space efficiency, and heat stability. An integrated digital microprocessor constantly monitors the temperature and CO2 density. The stackable design and multi-shelf capability combine with 6-sided heating for stable heat control. The door is transparent glass, and the chamber stainless steel. Cell Culture Incubator and for Bacteria Culture.
| Catalog # | Description | Quantity | Price | Add to Cart |
|---|---|---|---|---|
| H3501-E |
H3501-E Incu-Shaker™ Mini CO2 with non slip rubber mat, 230V |
|
|
|
| H3501 |
H3501 Incu-Shaker™ Mini CO2 with non slip rubber mat, 115V |
|
|
Product Description:
The Benchmark Mini CO2 Shaking Incubator is designed to control CO2 density, space efficiency, and heat stability. An integrated digital microprocessor constantly monitors the temperature and CO2 density. The stackable design and multi-shelf capability combine with 6-sided heating for stable heat control. The door is transparent glass, and the chamber stainless steel. Cell Culture Incubator and for Bacteria Culture.
Benchmark Mini CO2 Shaking Incubator
The Benchmark Mini CO2 Shaking Incubator was designed specifically for culturing cells. This machine combines a precision CO2 incubation chamber, an orbital shaker, and a precise system for controlling CO2 density and heat distribution. Benchmark employed their proprietary technology to limit vibration for smooth orbital shaking and to also carefully control temperature via a 6-sided direct heating system that includes a heated door. The inside and outside of the Mini CO2 Shaking Incubator are optimized to maximize space by allowing stacking and minimizing the physical footprint.
Outstanding Monitoring and Regulating – Accurate and Precise Technology
The Mini CO2 Shaking Incubator uses a proprietary six-side heating and heat distribution system that allows for high accuracy and minimal fluctuation. The combined technology allows for temperature consistency within 0.1 °C. This is performed by the low speed internal fan. The fan can uniformly spread air throughout the Mini CO2 Shaking Incubator stainless steel chamber, without air exchange from the external environment. Although intended to be used that way, the internal fan can also be disabled for any applications requiring solely gravity convection.
To exercise accurate and precise control, Benchmark engineered the Mini CO2 Shaking Incubator to use a digital microprocessor. The microprocessor constantly monitors the temperature and CO2% and will alert users if there is ever a deviation from the expected values. The CO2 density is measured via an InfraRed CO2 sensor that constantly provides accurate measurements for monitoring.
Space Efficiency for Samples and the Bench – Adjustability and Compactness
The inside of the chamber is designed to maximize the amount of space provided. For maintenance and heat control purposes, the corners inside the chamber are rounded. The walls of the chamber have various levels with shelf capability to allow for higher sample capacity or to make space for larger sample vessels. The shelf can also be pulled out for easier sample loading/unloading. Furthermore, the orbital shaker is carefully placed and shaped so that samples can comfortably fit and shake at up to 300RPM in a smooth and consistent motion. Furthermore, this careful engineering means that two Mini CO2 Shaking Incubators can be stacked without a safety risk.
A 9.5” x 11.5” platform is included and can be used for low speed shaking of a variety of laboratory vessels including Erlenmeyer flasks, culture plates, and media bottles. However, for higher speed mixing, Benchmark has adapted their patented MAGic Clamp™ Platform and Accessories. This optional platform allows users to select magnetic flask clamps and tube rack clamps and more securely attach them to the orbital shaker.
More Benchmark CO2 Incubators:
Often Bought Together
Brochure
H3501 (IncuShaker CO2 Mini) Brochure
| Technical Specifications | |
| Temperature Range: | Ambient +5 to 60°C |
| Temperature Accuracy: | ±0.5°C* |
| Temperature Uniformity: | ±0.5°C* |
| Temperature Increment: | 0.1°C |
| Temperature Stability: | 0.1°C* |
| Speed Range: | 30 to 300 rpm |
| Speed Increment: | 1 rpm |
| Mixing Orbit: | 19mm (3/4 in.) |
| CO2 Range: | 0 to 20% |
| CO2 Increment: | 0.1% |
| CO2 Accuracy: | ±0.1% |
| CO2 Sensor: | Dual Beam IR |
| Time Range: | 1 min. to 48 hours (or continuous) |
| Platform Dimensions: | 9.5 x 11.5 in. (23.5 x 29 cm |
| Chamber Dimensions: | 13.2 x 10.25 x 15.4 in. (33.5 x 26 x 39.2 cm |
| Chamber Volume: | 46L |
| Chamber Material: | Stainless Steel |
| Extrerior Dimensions: | 16.5 x 18.3 x 21.8 in. (42 x 46.5 x 55.3 cm |
| Weight: | 90 lbs / 40.1kg / d> |
| Electrical: | 120V or 230V, 50-60Hz (350W) |
| * At a set tempertaure of 37.0°C | |
Benchmark Mini CO2 Shaking Incubator Features:
- Digital Microprocessor for Temperature & CO2 Monitoring
- Dual Beam InfraRed CO2 Sensor for Accurate Measurement & Control of CO2 Density
- Integrated 19mm Circular Orbital Shaker, up to 300RPM
- Stackable Shelf Design
- Beltless Motor Drive to Limit Vibration & Improve Smoothness
- Stainless Steel Chamber
- 6-Sided Direct Heating
