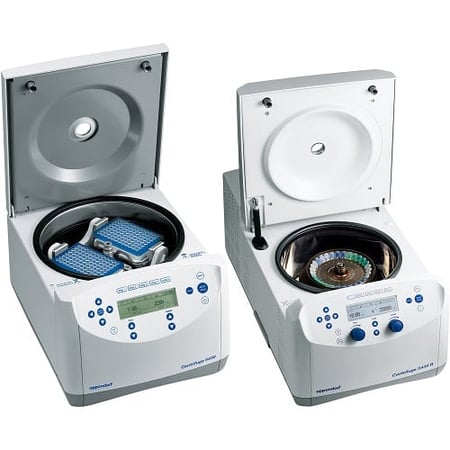

Eppendorf - centrifuge 5430/5430R
Eppendorf Centrifuge 5430 and 5430 R bring multi-purpose versatility to every lab bench! With a maximum speed of 30,130 × g (17,500?rpm) and the refrigerated model with a temperature range of -11 °C to +40 °C, and a wdie range fo rotor options, the centrifuge is adapabtible to many protocols.
Product description | Catalog # | Quantity | Price | |
---|---|---|---|---|
22620584 |
|
$5,030.00 $4,694.67 |
||
22620596 |
|
$5,030.00 $4,694.67 |
||
22620667 |
|
$10,710.00 $9,996.00 |
||
22620689 |
|
$10,710.00 $9,996.00 |
||
22620509 |
|
$6,189.00 $5,776.40 |
||
22620511 |
|
$6,189.00 $5,776.40 |
||
22620525 |
|
$5,979.00 $5,523.39 |
||
22620601 |
|
$12,018.00 $11,216.80 |
||
22620612 |
|
$11,725.00 $10,943.33 |
||
22620623 |
|
$12,018.00 $11,216.80 |
||
22620634 |
|
$11,901.00 $11,107.60 |
||
22620645 |
|
$12,887.00 $12,027.87 |
||
22654021 |
|
$263.00 $240.55 |
||
22654063 |
|
$366.00 $334.75 |
||
22654101 |
|
$366.00 $334.75 |
||
22654144 |
|
$366.00 $334.75 |
||
22654187 |
|
$263.00 $240.55 |
||
22654225 |
|
$263.00 $240.55 |
||
22654241 |
|
$322.00 $294.52 |
||
22654322 |
|
$263.00 $240.55 |
||
22654331 |
|
$195.00 $178.36 |
||
22654349 |
|
$195.00 $178.36 |
||
22654365 |
|
$195.00 $178.36 |
||
22654420 |
|
$910.00 $832.32 |
||
22654501 |
|
$195.00 $178.36 |
||
22654512 |
|
$195.00 $178.36 |
||
22654523 |
|
$195.00 $178.36 |
||
22654524 |
|
$195.00 $178.36 |
||
22654538 |
|
$195.00 $178.36 |
||
22654545 |
|
$195.00 $178.36 |
||
22654556 |
|
$195.00 $178.36 |
||
22654567 |
|
$195.00 $178.36 |
||
22654004 |
|
$915.00 $836.89 |
||
22654047 |
|
$1,302.00 $1,190.85 |
||
22654080 |
|
$1,302.00 $1,190.85 |
||
22654128 |
|
$1,439.00 $1,316.16 |
||
22654161 |
|
$915.00 $836.89 |
||
22654209 |
|
$1,445.00 $1,321.65 |
||
22654306 |
|
$2,447.00 $2,238.11 |
||
22654403 |
|
$2,334.00 $2,134.76 |
||
22620533 |
|
$4,861.00 $4,488.37 |
||
22620540 |
|
$4,983.00 $4,650.80 |
||
22620541 |
|
$6,450.00 $6,020.00 |
||
22620557 |
|
$6,450.00 $6,020.00 |
||
22620568 |
|
$7,348.00 $6,858.14 |
||
22620572 |
|
$7,348.00 $6,858.14 |
||
22620656 |
|
$12,887.00 $12,027.87 |
||
22620678 |
|
$10,606.00 $9,898.93 |
||
22620690 |
|
$10,606.00 $9,898.93 |
||
22620576 |
|
$7,433.00 $6,937.46 |
||
22620580 |
|
$7,433.00 $6,937.46 |
||
22620659 |
|
$12,951.00 $12,087.60 |
||
22620663 |
|
$12,951.00 $12,087.60 |
||
22654446 |
|
$443.00 $405.18 |
||
5427708006 |
|
$312.00 $285.37 |
||
5427730001 |
|
$90.00 $82.32 |
||
5825718003 |
|
$241.00 $220.43 |
||
22620513 |
|
$6,450.00 $6,020.00 |
||
22620515 |
|
$6,450.00 $6,020.00 |
||
22620603 |
|
$12,141.00 $11,331.60 |
||
22620625 |
|
$12,141.00 $11,331.60 |
||
5427754008 |
|
$1,452.00 $1,328.05 |
||
5427755004 |
|
$1,125.00 $1,028.97 |
||
5427757007 |
|
$2,088.00 $1,909.76 |
||
22620638 |
|
$12,129.00 $11,320.40 |
||
5427750002 |
|
$1,690.00 $1,545.73 |
||
22620642 |
|
$12,129.00 $11,320.40 |
||
22620560 |
|
$6,450.00 $6,020.00 |
||
002231000372R |
|
$5,896.00 $3,120.00 |
||
0022654004R |
|
$1,700.00 $595.00 |
||
002231000372-REF |
|
$5,300.00 $2,995.00 |
||
0022620584-BNS |
|
$4,907.00 |
||
0022620584230V-BNS |
|
$4,308.00 |
||
0022620584230V-BNS |
|
$4,308.00 |
||
5427754008-REF |
|
$1,534.00 $950.00 |
||
5427750002-REF |
|
$1,623.00 $1,195.00 |
||
22654306-REF |
|
$3,500.00 $1,695.00 |
Eppendorf - centrifuge 5430/5430R Product Description
Eppendorf Centrifuge 5430 and 5430 R bring multi-purpose versatility to every lab bench! With a maximum speed of 30,130 × g (17,500?rpm) and the refrigerated model with a temperature range of -11 °C to +40 °C, and a wdie range fo rotor options, the centrifuge is adapabtible to many protocols.
Eppendorf 5430 / 5430 R Centrifuge – User-friendly, Durable and Versatile
The unique cross-over Eppendorf 5430 and Eppendorf 5430 R centrifuges combine the best features of a microcentrifuge (small footprint) and multipurpose centrifuge (versatility) in one instrument. With a maximum speed of 30,130 × g (17,500?rpm), these centrifuges spin rotors for Eppendorf tubes, microtubes, PCR strips, or microtiter plates.
With its compact size, the Eppendorf 5430 and Eppendorf 5430 R centrifuges also accommodate rotors for microplates and 15/50 mL conical tubes. Now, the rotor program has been expanded to include additional Eppendorf QuickLock® rotors. This includes 48-place rotors (1.5/2.0 mL), a 16-place rotor for Eppendorf Tubes® 5.0 mL and a swing-bucket rotor (24 × 1.5/2.0 mL). The Eppendorf 5430 R refrigerated unit has a temperature range of -11 °C to +40 °C. Both the Eppendorf 5430 and Eppendorf 5430 R are available in either a keypad or knob interface format. With their unmatched versatility, the Eppendorf 5430 and Eppendorf 5430 R centrifuges are the flagship products among the Eppendorf microcentrifuge portfolio.
Key Features:
- Compact size
- Soft ramp option to adjust acceleration and braking time
- Short spin (quick spin) option
- Emergency lid release in the event of a power failure
- Multiple centrifuge rotors and adapters are available to centrifuge the following tube types
- Maximum speed: 30,130 × g (17,500?rpm)
- Soft-touch one-finger lid closure for ergonomic operation
Do you need a different Eppendorf centrifuge?
Often Bought Together
Centrifuge 5430/5430 R Supplementary Products
Eppendorf Centrifuge 5430/ 5430R Brochure
- Eppendorf Centrifuge 5430/5430 R Brochure
Manual
Specifications
5430 | 5430 R | |
Max. RCF | 30,130 × g | 30,130 × g |
Max. speed | 17,500 rpm | 17,500 rpm |
Max. capacity | 48 × 1.5/2.0 mL, 6 × 50 mL, 2 × MTP | 48 × 1.5/2.0 mL, 6 × 50 mL, 2 × MTP |
Rotors available | 12 | 12 |
Acceleration time | 14 s | 14 s |
Deceleration time | 15 s | 15 s |
Timer | 30 s to 99:59 h, with continuous run function | 30 s to 99:59 h, with continuous run function |
SOFT brake function | yes | yes |
Noise level | < 58 dB(A) with Rotor F-45-30-11 | < 54 dB(A) with Rotor F-45-30-11 |
Power supply | 120 V, 50?–?60 Hz | 120 V, 50?–?60 Hz |
Max. power consumption | 475 W | 1.050 W |
Dimensions (W?×?D?×?H) | 33?× 42?× 25 cm /td> | 38?× 64?× 29 cm /td> |
Height (with open lid) | 56 cm /td> | 63 cm /td> |
Weight w/o accessories | 29kg / d> | 56kg / d> |
Cooling | non-refrigerated | refrigerated |
Temperature control range | NA | -11 °C to 40 °C |
Eppendorf 5430 / Eppendorf 5430 R Centrifuge Features and Benefits:
-
Compact size
-
Soft ramp option to adjust acceleration and braking time
-
Short spin (quick spin) option
-
Emergency lid release in the event of a power failure
-
Multiple centrifuge rotors and adapters are available to centrifuge the following tube types:
-
Microcentrifuge tubes (0.2mL to 2.0mL)
-
PCR strip tubes
-
Microtainers
-
Spin columns
-
Cryotubes
-
Centrifuge (conical) 15mL and 50mL tubes
-
Multi-well (96-well and 384-well) plates
-
Depp well plates (29mm maximum height)
-
Slides (with CombiSlide adapter)
-
-
Maximum rotor capacity: 48 × 1.5/2.0 mL, 6 × 50 mL, 2 × MTP
-
Maximum speed: 30,130 × g (17,500?rpm)
-
Soft-touch one-finger lid closure for ergonomic operation
-
Menu-driven, multilingual operation menu (English, German, French, Spanish
-
Large backlit display
-
5 program keys for easy access to routine programs
-
Saves up to 50 user-defined programs
-
Automatic rotor recognition and imbalance detection for maximum operational safety
-
Eppendorf QuickLock® – System for quickly opening and closing of the rotor lid
-
Our aerosol-tight Eppendorf QuickLock rotors close with only 1/4 of a turn. This not only saves you time during everyday use, it also removes repetitive stress for your wrist
Eppendorf 5430 R (Refrigerated) additional features:
-
Temperature range: -11 °C to +40 °C
-
The patented compressor technology reduces vibrations and protects your samples
-
Continuous cooling maintains a constant temperature after the run has been completed – your samples stay cool
- FastTemp pro® function for programmable pre-cooling according to date and time
- ECO shut-off engages after 8 hours of non-use to decrease energy consumption (37% overnight) and extend compressor life (can be deactivated in menu)
- Built-in condensation drain to eliminate water accrual

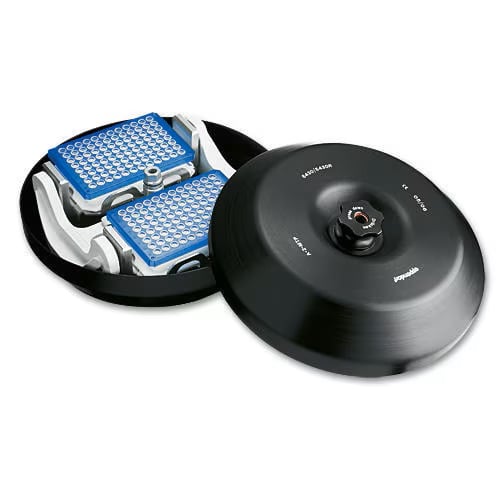

Eppendorf 5430 & 5430 R Centrifuge Rotors
Additional Features
Eppendorf QuickLock® rotors
Our aerosol-tight Eppendorf QuickLock rotors close with only 1/4 of a turn. This not only saves you time during every day use, it also takes repetitive stress off your wrist.
Compact footprint
Model 5430 is also available in a refrigerated version (5430 R). The compressor at the back of the Centrifuge 5430 R—characteristic to all Eppendorf microcentrifuges—keeps the footprint small and the access height low.
Energy savings of ECO shut-off and FastTemp pro:
ECO shut-off saves you up to 88% energy overnight by deactivating the compressor after a period of nonuse (can be adjusted to engage after 8, 4, 2, or 1 hour). In addition to the standard FastTemp pre-cooling program Eppendorf Centrifuge 5430 R features a unique software option called FastTemp pro. This program allows for automated pre-cooling based on pre-programmable time and date. FastTemp pro can be set to a specific date or as a repetitive event during several days every week. Simply turn the centrifuge into standby mode when you leave your lab and let FastTemp pro take care of pre-cooling in the morning. This not only makes operation super easy, it also saves you up to 90 % of energy overnight.
