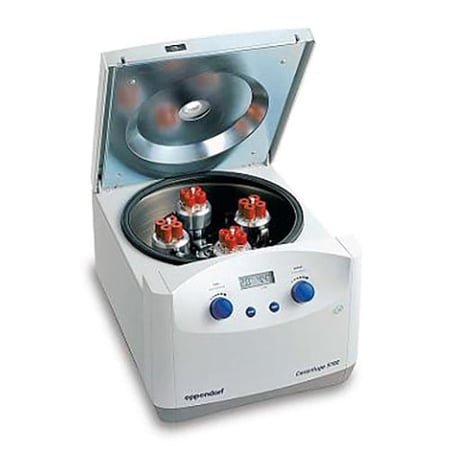

Eppendorf Centrifuge 5702

Benefits of the Eppendorf Centrifuge 5702

• Speed up your work. FastTemp function for fast & accurate pre-cooling.
• Get the results you want. Various fixed angle & switch-bucket rotor & an extensive range of adapters, nearly all types of tubes can be used.
• Better design & construction compared to competitors. Stainless steel rotor chamber that is rust proof & removable making it easy to clean.
• Absolute control of your results. Soft break option for slow acceleration & braking. Optimal for cell separation by gradient centrifugation.
• Easy maintenance. Built-in condensation drain to eliminate water accumulation & prevent corrosion in the Refrigerated & Heater Model 5702 RH.
• Excellent warranty. Eppendorf Centrifuge Model 5702 comes with a 2-year warranty.
• Perfect temperature control. Extended temperature control from –9 °C to 42°C. Active heating & cooling guarantees high temperature accuracy (± 1°C at 4°C & 37°C) during the entire centrifugation cycle for the Refrigerated & Heated Model 5702 RH.
• Use Refrigerated Model 5702 R for heat sensitive samples. Heated & Refrigerated Model 5702 RH allows centrifugation under biological conditions to improve cell viability for more accurate results in downstream application.

Eppendorf Centrifuge 5702

• Maximum speed of 3,000 x g (4,400 rpm), increments of 100 rpm
• Stainless steel rotor chamber is rust-free
• ECO shut-off engages after 8 hours of non-use
• Automatic imbalance detector
• Quiet operation
• Very compact design
• Low access height
• Automatic motorized locking of the lid
• Optimized airflow directed backwards
• Switch between rpm & rcf
• Separate Short Spin button
• Timer can be set for up to 99 minutes
• Continuous mode can be selected
• Parameter locking
• Glass window for quick calibration check
• Six rotor options
• SOFT brake function for delicate samples
• “At Set” function starts timer when set speed is reached for reproducible results
• Optimized braking ramp for isolation of mononuclear blood cells using Ficoll density gradient centrifugation

Model 5702 R (refrigerated) – Additional Features

• Adjustable from -9° to +40°C
• Standby refrigeration
• "At temp" function – quickly reach set temperature
• ECO shut-off engages after 8 hours of non-use to reduce energy consumption & extend compressor life
• Built-in condensation drain to eliminate water accumulation & prevent corrosion
• Use for safe holding at 4°C

Model 5702 RH (refrigerated & heated)

• Adjustable from -9° to +43°C
• Immediately ready for use via standby heating/refrigeration
• Temperature holds steady at 4°±1°C & 37°C±1°C
• Active heating
• Precise temperature control, software controlled depending on rotor
• Two programming keys to store routine procedures
• Ideal for conjugation of sperm in IVF labs & spin-down of temperative-sensitive active humam cells
• Temperature settings from -9°C to 40°C (5702 R) / 42°C (5702 RH)
• Centrifuge 5702 RH allows centrifugation under biological conditions to improve viability for more accurate results in downstream (e.g. cell cultivation)

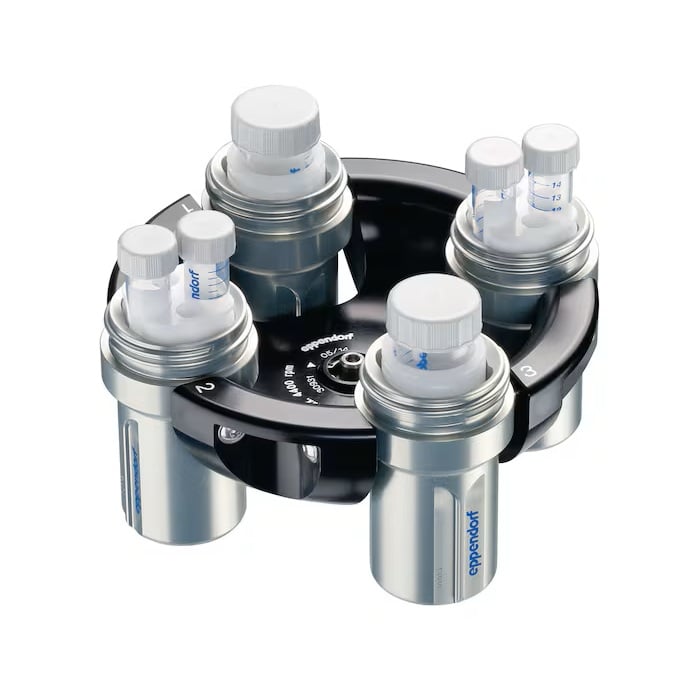

Included 4 x 100mL Swing-Bucket Rotors

• Aluminum, round buckets with aerosol-tight caps available
• Maximum rotational speed: 4400rpm (maximum rcf: 3000xG)
• Square buckets available for use with glass, round-bottom tubes

Included Adapters (selected models)

• 4 x 13mm O.D. adapters & 4 x 16mm O.D. adapters
• 4 x15 & 4 x 50mL Conical adapters

Specifications & Ordering Information: Max. power requirements, Model 5702: 200w; Models 5702 R, RH: 380w. Power supply, all models: 230V 50Hz. Dimensions (L x W x H), Model 5702: 15.7 x 12.6 x 9.4 in. (40 x 32 x 2 cm ; Models 5702 R, RH: 22.8 x 15.0 x 10.2 in. (58 x 38 x 2 cm . Weight, Model 5702: 44.0 lb. (20kg); Models 5702 R, RH: 79.4 lb. (36kg). Compliance: Conform to CE, UL, cUL, IVD requirements
