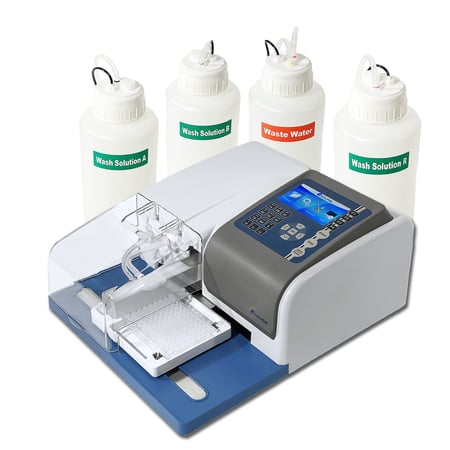

Benchmark Scientific - Accuris SmartWasher 96 Microplate Washer
Quick set up and easy programming Compatible with U, V, C, and flat bottom 96 well plates Flexible programming for full plate, partial plate, or strip washingandnbsp;Choose 8-channel or 12-channel wash headandnbsp;Individually controlled wash and rinse sources
Product description | Catalog # | Quantity | Price | |
---|---|---|---|---|
MW9600-8CM |
|
$344.35 $317.09 |
||
MW9600-12CM |
|
$379.44 $349.40 |
||
MW9600-E |
|
$5,109.49 $4,704.99 |
||
MW9600-E |
|
$5,109.49 $4,704.99 |
||
MW9600 |
|
$5,109.49 $4,704.99 |
Benchmark Scientific - Accuris SmartWasher 96 Microplate Washer Product Description
Quick set up and easy programming Compatible with U, V, C, and flat bottom 96 well plates Flexible programming for full plate, partial plate, or strip washingandnbsp;Choose 8-channel or 12-channel wash headandnbsp;Individually controlled wash and rinse sources
Microplate Washer for 96-well Microplates
Research requires flexibility – the SmartWasher™ 96 provides it Full plates, partial plates, and strips with U, V, C, or flat bottoms are accepted by this fully automated washer
• Precision control of aspiration needle position
- Accurate to 01mm
- Minimal residual liquid, ≤1μlwell
• Auto rinse function eliminates cross contamination
• Up to 100 wash protocols can be customized and stored
• Liquid level sensors in wash and waste bottles
• Wash protocols can be transferred via flash drive
Multiple aspiration point settings allow for minimal residual liquid in the wells after aspiration All parameters, including dis-pense volume, suction time, soak and shake cycles, and shaking speed are easily programmed using the large 43” LCD display and keypad Up to 100 wash protocols can be stored on board the SmartWasher™ 96 and recalled when needed, or transferred between machines with a flash drive
• Quick set up and easy programming
• Compatible with U, V, C, and flat bottom 96 well plates
• Flexible programming for full plate, partial plate, or strip washing
• Choose 8-channel or 12-channel wash head
• Individually controlled wash and rinse sources
The washer comes equipped with 2 wash bottles, 1 rinse bottle and a waste bottle
All have sensors that alert the user when the solutions are low, or in the case of the waste bottle, when it needs to be emptied
- An auto-rinse function primes the dispensing tube and wash heads to prevent cross contamination and clogs
-
- 8- and 12-channel wash heads are available separately to accommodate plates in either orientation
-
- A transparent, acrylic shield surrounds the wash area, allowing for visualization of the plate
-
- Should a spill or leak occur, the beveled spill well ensures that the liquid is extracted immediately to avoid cross-contamination
-
All have sensors that alert the user when the solutions are low, or in the case of the waste bottle, when it needs to be emptied
- An auto-rinse function primes the dispensing tube and wash heads to prevent cross contamination and clogs
-
- 8- and 12-channel wash heads are available separately to accommodate plates in either orientation
-
- A transparent, acrylic shield surrounds the wash area, allowing for visualization of the plate
-
- Should a spill or leak occur, the beveled spill well ensures that the liquid is extracted immediately to avoid cross-contamination
-
- An auto-rinse function primes the dispensing tube and wash heads to prevent cross contamination and clogs
- 8- and 12-channel wash heads are available separately to accommodate plates in either orientation
- A transparent, acrylic shield surrounds the wash area, allowing for visualization of the plate
- Should a spill or leak occur, the beveled spill well ensures that the liquid is extracted immediately to avoid cross-contamination
-
Specifications
Wash heads
| 1 x 8 or 1 x 12 |
| Soaking & shaking time |
| 1 second to 99 minutes |
| Plate types |
| Flat, U, V, or C bottom |
| Shaking speed |
| Slow, medium, fast |
| Washing volume |
| 50-2000μl, in 50μl increments |
| Bottle capacity |
| 4 x 25L, 2 wash, 1 rinse, 1 waste |
| Dispensing accuracy |
| ≤2% @300μl |
| Data connection |
| USB for flash drive |
| Dispensing precision |
| CV ≤15% @ 300μl |
| Dimensions (W x D x H) |
| 136 x 1811 x 787 in |
| Aspiration modes |
| Single, two, and three points |
| Weight |
| 12kg 264 lbs |
| Residual liquid |
| ≤1μl |
| Electrical |
| 110-240VAC, 5060Hz |
|
|
